- SHELL SERIES Custom led displays are Professionally Designed.
- Custom LED display screens pay more attention to structural breakthroughs than ordinary LED displays.
- To customize the LED display, the manufacturer adopts make a new mouldand full customization method.
- The custom LED display, as a unique display shape, has its own beauty.
- 40/365 A2, Ground Floor, Vattekunnam, Edappally, Kochi - 682024
- [email protected]

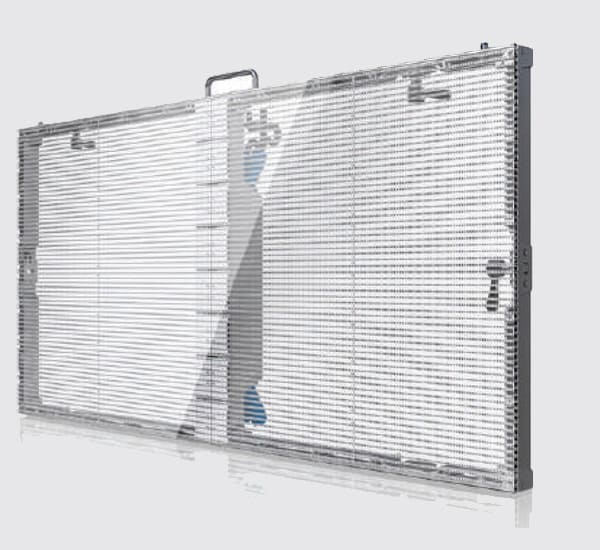

SHELL Series
MAJOR FEATURES
| SHELL SERIES | ||||
| Model Name | SH-3.9TS | SH-7.68TS | SH-10TS | SH-12TS |
| Operating Environment | Outdoor | Outdoor | Outdoor | Outdoor |
| Pixel Pitch (mm) | 3.9 | 7.68 | 10 | 12 |
| Cabinet Resolution | NA | NA | NA | NA |
| Cabinet Size (mm) | NA | NA | NA | NA |
| Cabinet Type | Mild Steel Iron Cabinet | |||
| LED Encapsulation Make | Kinglight | Kinglight | Kinglight | Kinglight |
| LEDType | SMD 1515 | SMD 2020 | SMD 2525 | SMD 2525 |
| Brightness | 500 nits | 700 nits | 4500 nits | 4200 nits |
| Driving IC | ICN2153 | ICN2153 | ICN2153 | ICN2153 |
| Scan | 1/40 | 1/32 | 1/8 | 1/8 |
| Service Access | Rear | Rear | Rear | Rear |
| Weight (kg) | 30 | 30 | 15 | 15|12 |
| Viewing Angle | 140/130 | 140/130 | 140/130 | 140/130 |
| Module Size | 320 x 160 | 320 x 160 | 320 x 160 | 192 x 192 |
| Minimum View Distance (m) | >=2 | >=2.5 | >=5 | >=6 |
| Refresh Rate (Hz) | >=3840 | >=3840 | >=3840 | >=3840 |
| Power Consumption | 44/3 | 46/3 | 85/3 | 95/3 |
| Ingresss Protection | IP30/IP45 | IP30/IP45 | IP65/IP45 | IP65/IP45 |
| MTBF (hours) | 10,000 | 10,000 | 10,000 | 10,000 |
| Life span (hours) | 100000 | 100000 | 100000 | 100000 |
| Certification | BIS | BIS | BIS | BIS |
| Preffered Applications: | Rental, Fixed Indoor & Outdoor, Vehicle Mounted Screen, Dancefloor | |||
