- Rental led screen are Cost Effective
- Rental led screen provide High Stability

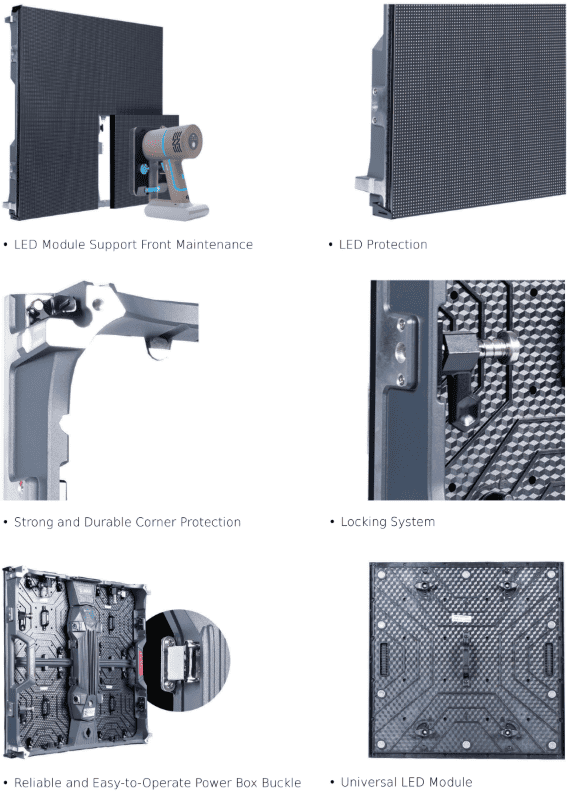

- Rental led screen have Rear Access Module2
- Applications of rental led screen; Stage, Conferences, Expo, Events, Concert, etc.

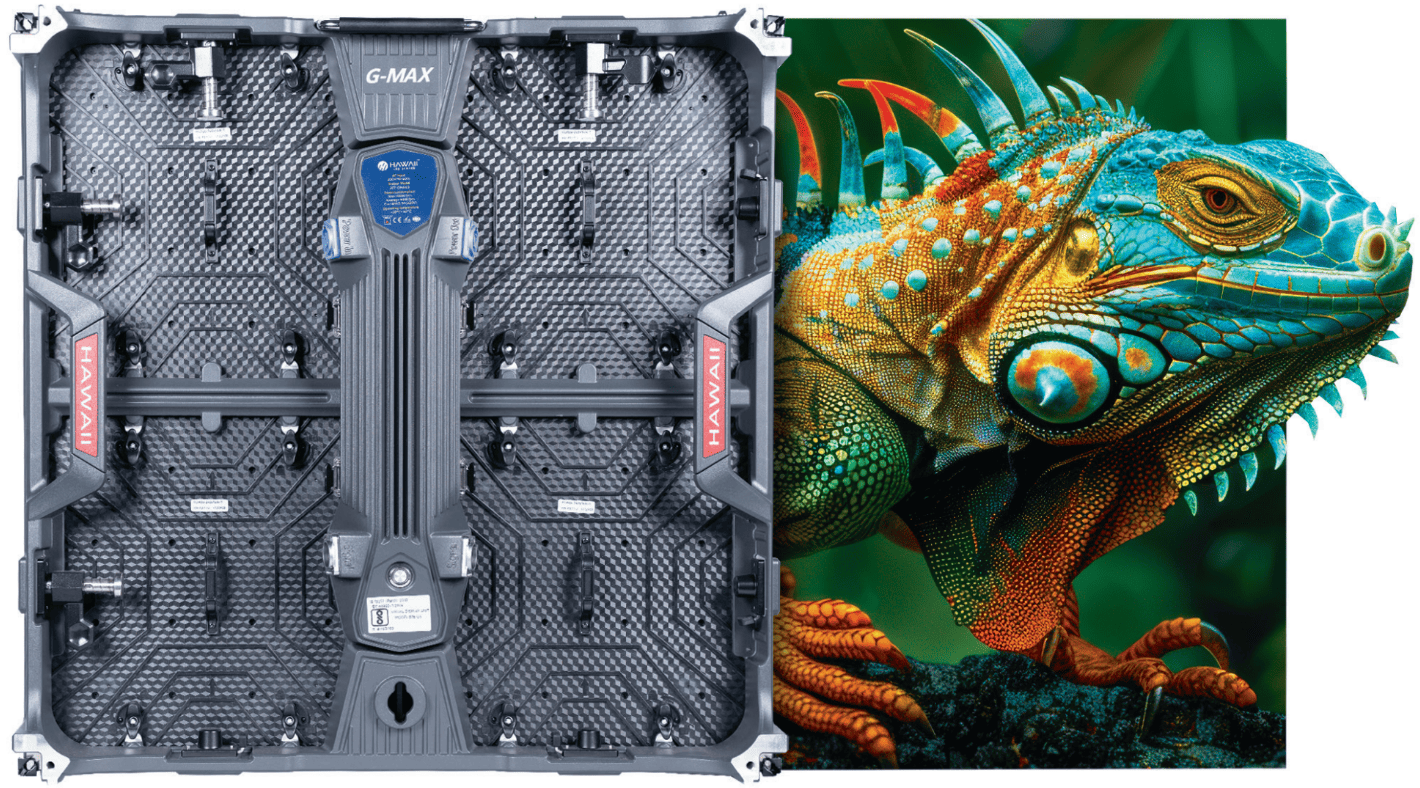

- Rental led screen have Die-cast aluminum cabinet
- Rental led screen provide High ingress protection
- Rented led screen are modular Design
- 40/365 A2, Ground Floor, Vattekunnam, Edappally, Kochi - 682024
- [email protected]

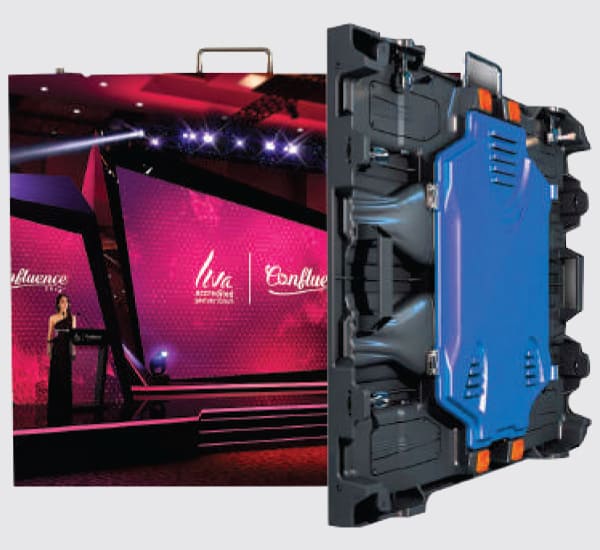

Rentel LED Screen ALPHA Series
MAJOR FEATURES
| ALPHA SERIES | ||||
| Model Name | PM-2IS | PM-2.5IS | PM-3IS | PM-4IS |
| Operating Environment | Indoor | Indoor | Indoor | Indoor |
| Pixel Pitch (mm) | 2 | 2.5 | 3 | 4 |
| Cabinet Resolution | 320 X 320 | 256 x 256 | 192 X 192 | 160 x 120 |
| Cabinet Size (mm) | 640 X 640 | 640 X 640 | 576 X 576 | 640 X 640 |
| Cabinet Type | Magnesium Dicast Cabinet | |||
| LED Encapsulation Make | Kinglight | Kinglight | Kinglight | Kinglight |
| LED Type | SMD 1515 | SMD 2020 | SMD 2020 | SMD 2020 |
| Brightness | 500 nits | 700 nits | 1200 nits | 1200 nits |
| Driving IC | ICN2153 | ICN2153 | ICN2153 | ICN2153 |
| Scan | 1/40 | 1/32 | 1/32 | 1/20 |
| Service Access | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| Weight (kg) | 9 | 8 | 7 | 8 |
| Viewing Angle | 140/130 | 140/130 | 140/130 | 140/130 |
| Module Size | 320 x 160 | 320 x 160 | 192 X 192 | 320 x 160 |
| Minimum View Distance (m) | >=2 | >=2.5 | >=3.0 | >=4.0 |
| Refresh Rate (Hz) | >=3840 | >=3840 | >=3840 | >=3840 |
| Power Consumption | 44/3 | 46/3 | 52/3 | 50/3 |
| Ingresss Protection | IP30/IP45 | IP30/IP45 | IP30/IP45 | IP30/IP45 |
| MTBF (hours) | 10,000 | 10,000 | 10,000 | 10,000 |
| Life span (hours) | 100000 | 100000 | 100000 | 100000 |
| Certification | BIS | BIS | BIS | BIS |
| Preffered Applications: | Rental, Fixed Indoor & Outdoor, Vehicle Mounted Screen, Dancefloor | |||
